Product
|
|
|
|
AI Box
|

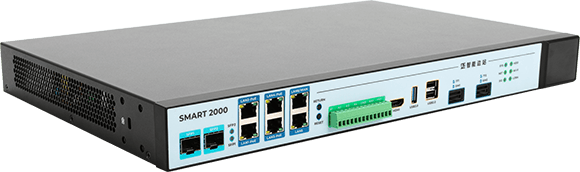

Smart 2000
|

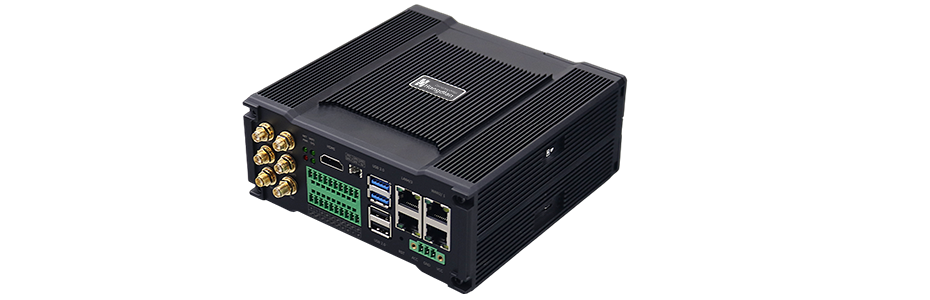

Smart 3000
|
|
Hardware
|
|
CPU
|
RK3399, highest frequency: 1.8GHz; 64 bits
|
8 core CPU ARM Cortex-A76 + Dual core ARM Cortex-A55 @1.8GHz
|
|
NPU
|
N/A
|
6Tops
|
|
Memory
|
2GB
|
8GB/12GB
|
|
Built-in storage
|
16GB
|
32GB/64GB
|
|
Cellular Interface
|
|
Modem
|
1 LTECAT4
|
1 × LTE Cat4 or 1 × 5G NR SA/NSA
|
|
Number of Antennas
|
1
|
2 (LTE version) or 4 (NR version)
|
|
SIM
|
1 x Mini SIM (2FF)
|
2×Mini SIM (2FF)（eSIM Optional）
|
|
Wireless Interface
|
|
Standards
|
N/A
|
802.11b/g/n/ac/ax, AP or station modes
|
|
Frequency Bands
|
2.4 GHz & 5GHz
|
|
Speed
|
1350Mbps (LTE version) or 750Mbps (NR version)
|
|
Antennas
|
3 (LTE version) or 2 (NR version)
|
|
GNSS Interface
|
|
Number of Antennas
|
N/A
|
1(Optional)
|
|
Peripheral Interface
|
|
Serial
|
3 x RS-232 (1 RS232 port can be configured as a RS485 port),DB9 male connector ;
|
2 × RS-232 + 3 × RS-485 serial port
|
|
1 x RS-485 serial port,3-pin 3.5 mm female socket
|
|
|
Ethernet
|
1x 10/100/1000 Mbps, Gigabit Ethernet
|
2 × LAN 10/100/1000Mbps + 2 × WAN/LAN 10/100/1000Mbps, Gigabit Ethernet
|
|
USB
|
USB 2.0 x 4, USB 3.0 x 2, OTG x1
|
2 × USB3.0, 2 × USB2.0
|
|
Display
|
HDMI 2.0 x 1
|
1 × HDMI, maximum resolution 2K@30Hz, support audio
|
|
Software
|
|
Video code
|
H.265/H.264/VP9 4K@60fpsHD video decoding
|
H.265/H.264/VP9, 4K@60fpsHD video decoding
|
|
Image processing
|
BMP, JPG, PNG, GIF
|
BMP, JPG, PNG, GIF
|
|
Power Supply and Consumption
|
|
Connector
|
4 pin socket
|
3 pin socket
|
|
Voltage Input
|
12V DC
|
DC 9~36V, including ACC
|
|
Power Consumption
|
Less than 10 W (only system)
|
Idle: 333mA@12V DC, Data transceiving: 598mA@12V DC
|
|
Others
|
|
Reset Button
|
Yes
|
Yes
|
|
LED Indicators
|
4 indicators for PWR, SYS, 4G, WIFI
|
4 x indicators for SYS, WiFi, NET, PWR
|
|
Hardware Watchdog
|
Yes
|
Yes
|
|
Physical Characteristics
|
|
Ingress Protection
|
IP30
|
IP30
|
|
Housing & Weight
|
Metal
|
Aluminum+ABS plastic, about 900g
|
|
Dimension
|
170*150*27mm
|
145×144×64(mm)
|
|
Installations
|
Wall-mounting
|
Wall-mounting
|
|
Operating Temperature
|
-20 ~ +70 °C
|
-20 ~ +70 °C
|
|
Storage Temperature
|
-40 ~ +85 °C
|
-40 ~ +80 °C
|
|
Relative Humidity
|
5 ~ 95% RH
|
0~90%(no condensation)
|
